9.5#

Released on 2025-06-20.

VTK 9.5 Release Notes#

Changes made since VTK 9.4.2 include the following.

New Features#

Annotation#

  • Grid Axes in VTK VTK now has the vtkGridAxesActor3D that is the successor to the vtkCubeAxesActor for cube axes annotation. This new actor was the default cube axes grid for ParaView and uses vtkAxisActor underneath the covers for better label placement strategy over its precursor. Grid Axes Actor 3D

DataModel#

  • Add AxisAligned and Offset options to vtkPlane vtkPlane now has AxisAligned and Offset options.

    • AxisAligned: if On, locks normal to plane to be aligned with x, y, or z axis.

    • Offset: the origin is shifted in the direction of the normal by the offset.

  • Introduce implicit Frustum and widget

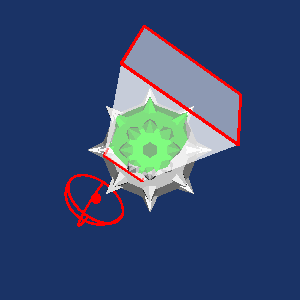

    Implicit Frustum Widget

    The new vtkFrustum implicit function represents a frustum resembling a pyramid with a clipped top. You can shape it by using setters for its vertical/horizontal angles and the near plane distance. It supports vtkImplicitFunction’s transform capabilities. (Author notes)

  • vtkDataSet: Add GetMinSpatialDimension vtkDataSet has a new method GetMinSpatialDimension that returns the minimum spatial dimension of the dataset.

  • Added new class to manually create a Cocoa NSAutoreleasePool The new class vtkCocoaAutoreleasePool allows manually creating and draining a Cocoa autorelease pool. (Author notes)

Filters#

  • Add AxisAlignedReflectionFilter

    The Axis Aligned Reflection filter reflects the input dataset across the specified plane. This filter operates on any type of data set or hyper tree grid and produces a Partitioned DataSet Collection containing partitions of the same type as the input (the reflection and the input if CopyInput is enabled). Data arrays are also reflected (if ReflectAllInputArrays is false, only Vectors, Normals and Tensors will be reflected, otherwise, all 3, 6 and 9-component data arrays are reflected).

  • Add AxisAlignedTransformFilter

    The Axis Aligned Transform Filter performs axis aligned affine transformation on the input (translation, scaling, rotation). The filter operates on any type of vtkDataSet or vtkHyperTreeGrid, and the outputs data type matches the input.

  • Add FillMaterial option to HTG Geometry filter vtkHyperTreeGridGeometry now has a FillMaterial option. Enabled by default, it produces the same result as before. When disabled, only interface lines are added to the resulting polydata.

  • Add option to add cells to the output of vtkPCANormalEstimation

    The vtkPCANormalEstimation support now adding cells to the output vtkPolyData to enable the visualization on paraview, the user can set the variable CellGenerationMode to 0: No cells will be added (default option), 1: A single cell encompassing the entire vtkPolyData and 2: A cell for each point.

  • Add Gaussian integration strategy

    The vtkIntegrateAttributes filter now accepts different integration strategies. The original way of integration is now called Linear and the Gaussian Integration strategy has been added. The Gaussian Integration handles higher order cells and n-linear degenerate cells like non planar quads or hexahedron with non planar faces. Also, the Gaussian integration is not affected by a different point ordering as long as the constraints specified for each cell are maintained.

  • Add support for oriented images in vtkProbeFilter

    vtkProbeFilter has been improved to support oriented images. The implementation now rely on the native support of orientation in the API of vtkImageData.

  • Add vtkQuadricDecimation::Set/GetMaximumError() vtkQuadricDecimation now has SetMaximumError() and GetMaximumError() methods. This allows stopping decimation when the node error exceeds a specified upper limit.

  • Append filters: Multithread and Improve Performance The vtkAppendFilter and vtkAppendPolyData filters have been re-written and multithreaded, significantly improving their performance. vtkMergeBlocks and vtkAppendDataSets, which use these filters internally, have also been improved.

  • 💥Introduce vtkExplodeDataSet filter

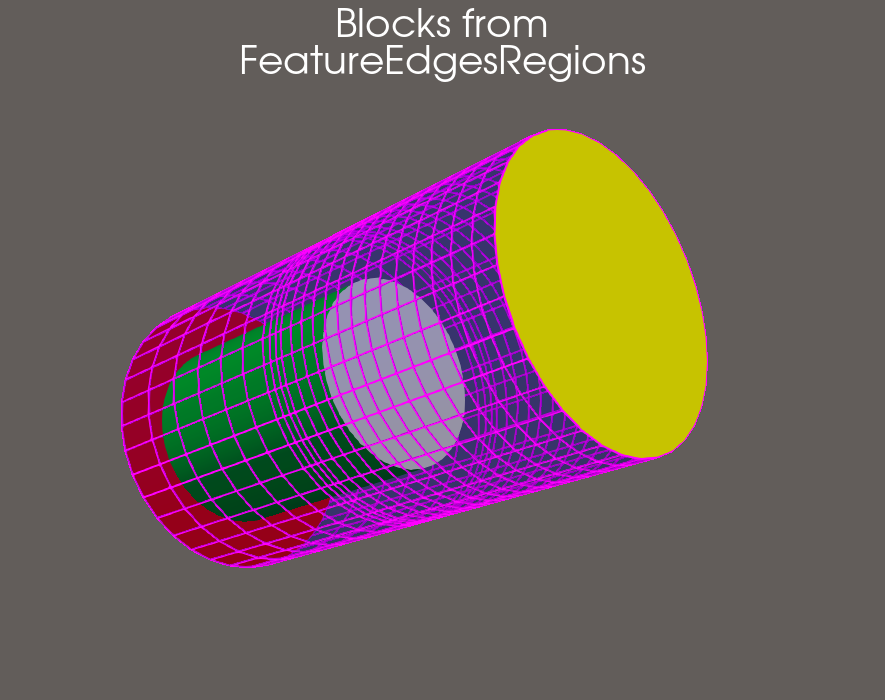

    Blocks from FeatureEdges Region Ids

    vtkExplodeDataSet creates a vtkPartitionedDataSetCollection from any input dataset according to a cell scalar isovalue criteria. Each partition of the output contains cells that share the same value for the given cell array. It replaces vtkSplitByCellScalarFilter and uses vtkPartitionedDataSetCollection as output. (Author notes)

  • vtkGenerateRegionIds vtkGenerateRegionIds is a new polydata filter that adds a CellData array containing a region identifier. A region is defined as a collection of cells sharing at least one point and having normals within a configurable MaxAngle threshold. The resulting array name is vtkRegionIds by default. (Author notes)

I/O#

  • Add AVMESH reader

    AVMESH is the unstructured format used in CREATE-AV Kestrel and Helios.

  • Add external memory support for vtkConduitSource

    vtkConduitSource can now keep point coordinates, cell connectivity and field values from conduit on an accelerator device such as CUDA or HIP. This is done by testing pointers in conduit to see if they are stored on a device or on the host memory. Note that you must configure and build VTK with VTK-m configured for the appropriate device, otherwise data will be transferred to the host memory.

  • Add vtkFidesWriter for writing out data in ADIOS2 BP format

    This adds vtkFidesWriter which uses the Fides library to write data to ADIOS2 BP files. This initial version only provides support for the BP engines (SST support is in progress). When writing the data, Fides will also write the schema as an attribute in the BP file, so the data can be read back in with vtkFidesReader.

  • Add zone section selection to FLUENT Reader You can now select zone sections to load when reading a FLUENT file, and the output multiblock will only contain these zones. A CacheData option is available to balance I/O performance and memory usage. Due to interdependencies, some unselected zones might still be read. (Author notes)

  • CGNSReader: Load surface elements stored as Element_t entries The CGNS reader has a new option LoadSurfacePatch that allows to read 2D elements that are not BC_t nodes (handled by the LoadBndPatch option) but rather Element_t nodes. This allows reading boundary elements regardless of assigned boundary conditions.

  • GLTF document loader selectively toggle model data The vtkGLTFDocumentLoader can now selectively enable/disable loading of animation keyframes (SetLoadAnimation), model images (SetLoadImages), and inverse bind matrices for model Skin (SetLoadSkinMatrix). All are true by default. (Author notes)

  • Import GLTF scenes from in-memory streams

    GLTF Stream Import Example

    The vtkGLTFImporter now accepts a resource stream to load the scene from.

  • netcdf: Enable CDF5 format VTK’s internal netcdf now enables the CDF5 format.

  • OpenFOAM reader: allow _0 files The OpenFOAM file reader in VTK now provides an option to load file names which ends with _0. This was previously disabled as OpenFOAM restart files often use this naming schema, but it prevented loading actual result files with the same pattern. (Author notes)

  • Support reading XGC files in Fides format Recent changes to Fides allow loading XGC files without specifying paths to all of the input files. The VTK Fides reader is updated to support reading these files.

  • Support unsigned integers in netCDF files NetCDF readers like vtkNetCDFCFReader now support unsigned integer data types, loading these variables into the correct VTK array type.

  • vtkConduitSource: Add state/metadata/vtk_fields node

    A new Conduit tree node, state/metadata/vtk_fields, has been introduced to store VTK-interpretable field metadata, including attribute_type and data cleaning parameters, thereby deprecating ascent_ghosts. (Author notes)

  • vtkDelimitedTextReader improvements: Preview, SkippedRecords, Comments vtkDelimitedTextReader now offers a GetPreview() method to inspect the initial lines of a file for configuration. A new SkippedRecords option allows skipping initial N records. Support for CommentCharacters has been added to ignore parts of records. (Author notes)

  • vtkLANLX3DReader: Import from ParaView vtkLANLX3DReader is a reader for LANL X3D files. This reader used to be available in ParaView, but it has been moved to VTK now.

  • vtkOpenFOAMReader: Multithreaded Reading of case files vtkOpenFOAMReader now supports multithreaded reading of case files (on by default, disable with SetSequentialProcessing(true)). Useful for large cases on network drives. An option ReadAllFilesToDetermineStructure (off by default) allows reading only proc 0 directory to determine case structure. Several performance improvements were also made. (Author notes)

  • VTK Conduit now supports pyramids and wedges VTK_PYRAMID and VTK_WEDGE cell types are now supported by vtkDataObjectToConduit. These cell types are serialized to Conduit nodes with “shape” set to “pyramid” or “wedge” respectively.

  • VTK Conduit now supports Blueprint implicit topology using point set

    Catalyst Conduit now supports Blueprint’s implicit topology using point sets, enabling meshes defined by points without cells. This is achieved by specifying a points topology type linked to an explicit coordset. (Author notes

  • VTKHDF: Add support for HyperTreeGrid

    HyperTreeGrid support has been added to the VTKHDF specification and reader. It supports temporal & multi-piece reading.

    VTKHDF Specification is now version 2.4.

  • VTKHDF: Support reading and writing composite distributed temporal datasets

    The vtkHDFWriter support now extends to composite temporal datasets (multiblock and partitioned dataset collection), all written in a same file. Composite temporal datasets can also be written and read efficiently in parallel using MPI, and support static meshes.

    Support for reading composite structures containing ImageData has been fixed. vtkHDFReader protected members WholeExtent, Origin and Spacing have been deleted.

Module System#

  • vtk_module_wrap_python

    Added argument vtk_module_wrap_python(WRAP_TARGET). This argument names a target to be created that depends upon all wrapping work done in the call.

Interaction#

  • Add getter and setter functions for the text on the buttons of vtkCameraOrientationRepresentation

    You can now customize the text displayed on top of the buttons of a vtkCameraOrientationRepresentation using functions like vtkCameraOrientationRepresentation::SetXPlusLabelText(const std::string& label). These methods follow similar naming convention to the existing getter methods for the vtkTextProperty corresponding to the button labels. (Author notes)

  • Add function Stop Select to vtkInteractorStyleRubberBandPick

    As the already existing “StartSelect()” function allows user to start picking, the new function “StopSelect()” allows to interrupt picking.

  • Add option to independently set the thickness of reslice cursor widget axes

    You can now set the thickness of reslice cursor axes independently by turning on the vtkResliceCursorRepresentation::IndependentThickness flag.

Python#

  • Wheels for linux aarch64 available on PyPi

    VTK now provides wheels for Linux aarch64. See https://pypi.org/project/vtk/9.5.0/

  • Add vtkBitArray support to numpy_support Array conversion between vtk and numpy (using vtk_to_numpy) now supports vtkBitArray. Converting a vtkBitArray to numpy results in an array of uint8.

  • Add deprecated decorator to Python

    VTK now provides a @deprecated decorator that emits a DeprecationWarning when a decorated function is called. You can edit the message shown to the user.

    To mark a function as deprecated, use:

    @deprecated(version=1.2, message="Use 'new_function' instead.")
def old_function():
    pass

  • Add to the NetCDFCFReader the ability to use data from an XArray An XArray can create a vtkNetCDFCFReader that uses its data, using zero copy when possible to create a VTK dataset using reader = xarray_data.vtk.reader(). Any vtkNetCDFCFReader options can be set (FileName is ignored), and the reader can be used as usual in a VTK pipeline.

  • OpenXR and OpenXRRemoting modules are now wrapped in Python and shipped in Windows VTK wheels! OpenXR loader is shipped with the wheel, but OpenXR runtimes have to be installed by the end user for their specific devices.

Qt#

  • Generate ConfigureEvent for Qt QResizeEvent

    The QVTKInteractorAdapter now translates QResizeEvent into a VTK ConfigureEvent. This brings its behavior in line with the native X11/Windows/macOS event handling, which generate ConfigureEvent in response to the native UI resize events.

  • Add EnableTouchEventProcessing flag to QVTKOpenGL*Widgets & QVTKOpenGLWindow

    As Qt touch event will automatically be translated to mouse event, so the mouse event will be processed twice for one touch in VTK interactor. With this new flag for QVTKOpenGL*Widget/QVTKOpenGLWindow, you can switch on/off the Qt touch event processing by purpose.

  • Multi-touch gestures in QtQuick/QML Added support for multi-touch interaction to QQuickVTKItem using the PinchHandler QML component. Connect new slots in QQuickVTKItem to the handler’s signals for translation, rotation, and scale changes. (Author notes)

Rendering#

  • Add new setting to specify 2D point shape in vtkProperty

    You can now draw round points by calling vtkProperty::SetPoint2DShape(vtkProperty::Point2DShapeType::Round). The default is square. This feature is currently implemented in the WebGPU rendering module. (Author notes)

  • Add option to independently set thickness of cell edges and lines

    You can now set the thickness of cell edges independently without altering the thickness of lines. This feature is useful to emphasize either edges or lines in a scene with different widths.

    Image showing different edge and line widths

    (Author notes)

  • Add Prolab Transfer function interpolation support

    The vtkColorTransferFunction now supports Prolab color space for interpolation via vtkColorTransferFunction::SetColorSpaceToProlab(). (Author notes)

  • Add SurfaceProbeVolumeMapper vtkOpenGLSurfaceProbeVolumeMapper is a PolyDataMapper colored with probed volume data. It accepts Input (rendered surface), Source (vtkImageData for scalar interpolation), and optional ProbeInput (geometry for interpolation). Scalar values are projected using texture coordinates. (Author notes)

  • Add vtkFastLabeledDataMapper

    The new vtkFastLabeledDataMapper uses GPU texture acceleration to draw labels at much higher frame rates, designed to render thousands of labels at over 60 fps.

  • Add vtkLightWidget to path-traced environments

    The vtkRenderingRayTracing module now supports rendering and interaction with the vtkLightWidget for interactive light placement and modification.

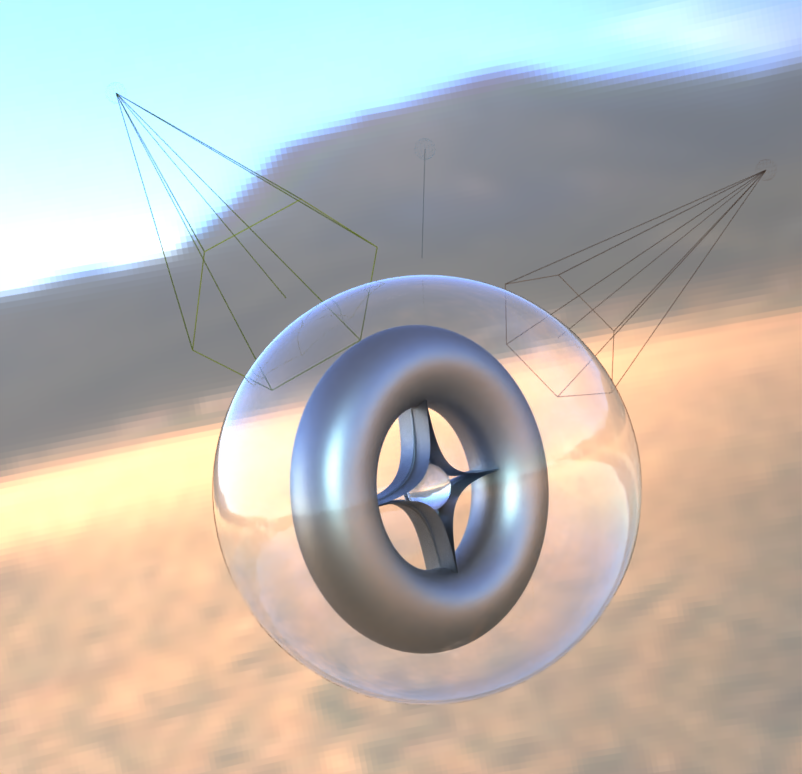

    LightWidget in Path Tracing

  • Add webgpu implementation for vtkGlyph3DMapper

    The VTK::RenderingWebGPU module now provides an implementation for the abstract vtkGlyph3DMapper class.

  • Add webgpu implementation for vtkPolyDataMapper2D

    The VTK::RenderingWebGPU module now provides an implementation for the abstract vtkPolyDataMapper2D class. This allows rendering geometry in the 2D viewport plane using webgpu.

  • Improved OpenGL Debug Logging

    You can now see detailed debug messages from OpenGL when VTK is built with VTK_REPORT_OPENGL_ERRORS=ON. The vtkOpenGLRenderWindow utilizes the GL_ARB_debug_output extension for more clarity. The QVTKRenderWindowAdapter now creates a debug OpenGL context when this option is enabled.

  • Memory Statistics For WebGPU Rendering Backend

    You can now view detailed information about the GPU memory usage of individual textures and buffers by setting the VTK_WEBGPU_MEMORY_LOG_VERBOSITY environment variable or specifying a vtkLogger::Verbosity value to vtkWebGPUConfiguration::SetGPUMemoryLogVerbosity.

  • Order Indepedent Translucency with MSAA

    The new vtkRenderer::UseOIT flag helps resolve conflicts between OIT and MSAA. (Author notes)

ThirdParty#

  • Add scnlib third-party library

    The scnlib third-party library (v4.0.1) has been added to VTK for fast and efficient parsing of numbers from strings.

WebAssembly#

  • Allow binding a WASM scene manager render window to a HTML canvas

    You can now call sceneManager.bindRenderWindow(vtkTypeUInt32 id, const char* canvasSelector) method from JavaScript in order to bind a render window to a HTML canvas element.

  • Add exception support for WebAssembly builds

    You can now enable exceptions in VTK wasm build with the VTK_WEBASSEMBLY_EXCEPTIONS option. Default value is OFF.

Wrapping#

  • Add function call feature in vtkObjectManager

    You can now invoke methods on a registered object using the new nlohmann::json vtkObjectManager::Invoke(vtkTypeUInt32 identifier, const std::string& methodName, const nlohmann::json& args) function.

  • Add method that allows updating states of specific objects.

    You can now call the void UpdateStatesFromObjects(const std::vector<vtkTypeUInt32>& identifiers) method on the vtkObjectManager to only update states of objects corresponding to the vector of identifiers. This method allows you to efficiently update a specific object and it’s dependencies without touching other unrelated objects.

  • Add new verbosity setting for log messages related to marshalling

    You can now configure the verbosity level for log messages in the core marshalling classes vtkDeserializer, vtkSerializer and vtkObjectManager. This facilitates debugging (de)serialization errors in release builds on the desktop and even in wasm.

Changes#

API#

  • Remove usage of the nlohmannjson library from public facing API :warning: BREAKING_CHANGES

    The nlohmann::json vtkAbstractArray::SerializeValues() method is removed due to conflicts with downstream projects using different nlohmannjson versions. This method, added in 9.4, has been reverted. (Author notes)

Annotation#

  • vtkAxisActor and vtkPolarAxesActor breaking changes :warning: BREAKING_CHANGES

    Protected members of vtkAxisActor and vtkPolarAxesActor classes were moved to private. Please use appropriate Getter/Setter to use them instead. Also some API were ported from const char* to std::string, breaking getters like vtkAxisActor::GetTitle() and vtkPolarAxesActor::GetPolarAxisTitle(). (Author notes)

Build#

  • C++17 is now required for VTK :warning: BREAKING_CHANGES

    VTK now requires C++17 compiler support. Minimum required compiler versions have been updated (e.g., GCC 8.0, Clang 5.0, MSVC 2017, Apple Clang 10.0, Intel ICC 19.0).

  • Simplify the customization for Kokkos backend

    When using Kokkos, setting up compilers for devices/backends requiring specific languages (like CUDA or HIP) is simplified. VTK now gets Kokkos backends directly from Kokkos configuration, automating compiler setup, removing the need to set VTK_KOKKOS_BACKEND.

Filters#

  • Rename HTG filter VisibleLeavesSize to GenerateFields

    vtkHyperTreeGridVisibleLeavesSize is renamed to vtkHyperTreeGridGenerateFields. The new class is more generic, allowing easier addition of new fields by inheriting vtkHyperTreeGridGenerateField.

  • HTG Surface Representation improvements :warning: BREAKING_CHANGES

    Cells outside the camera frustum are now decimated in 3D/2D/1D in HTG Surface Representation, working in all cases including non-parallel projection and masks. Several public members of vtkAdaptiveDataSetSurfaceFilter are deprecated or moved to private. (Author notes)

  • vtkParticleTracer::CachedData private

    Previously protected member vtkParticleTracer::CachedData is now a private member. It is not intended to be used by classes inheriting vtkParticleTracer.

  • vtkQuadricDecimation now handles id attributes

    The quadric decimation filter has been updated for vtkIdTypeArray point attributes. These are no longer interpolated during edge collapse; instead, one ID is kept, and the other is discarded.

I/O#

  • JSONSceneExporter: Support exporting a list of named actors and arrays selections

    vtkJSONSceneExporter can now export a list of named actors and select which arrays are exported per actor. vtkJSONDataSetWriter also supports point/cell array selection. Some protected methods in vtkJSONSceneExporter are now private.

Interaction#

  • High precision timers for Windows interactor

    The Windows interactor was creating timers using the native Win32 API SetTimer. However, this timer isn’t precise and the duration wasn’t respected for short duration. It now uses CreateTimerQueueTimer API which is much more precise.

Thirdparty#

  • Transition from VTKm to Viskores

    VTK has transitioned its dependency from VTKm to Viskores. VTK Accelerator VTKm API remains fully compatible for downstream users. No code changes should be required for applications using the VTK Accelerator API. (Author notes)

  • cli11

    Updated to be based on v2.5.0 for security updates and bug fixes.

  • diy

    Updated to use the internal fmt library. This change is necessary to avoid conflicts with diy’s fmt.

  • expat

    Updated to be based on 2.7.0. Using expat older than 2.6.3 now causes a warning.

  • exprtk

    Update to be based on 0.0.3-cmake.

  • fast_float

    Updated to be based on v8.0.2. The minimum version has been upgraded to 7.0.0 to support int parsing and have C++17 compliant results.

  • fmt

    Updated to be based on 11.1.4. The minimal external fmt version is now 11.0.0.

  • libharu

    Updated to be based on v2.4.5 to obtain the latest security and bug fix patches.

  • lz4

    Updated to be based on v1.10.0 for security updates and bug fixes.

  • lzma

    Updated to be based on v2.6.4 to obtain the latest security and bug fix patches.

  • exodusII and Ioss

    Updated exodusII and Ioss to be based on SEACAS 2025-02-27.

VR#

  • vtkOpenXRManager::Initialize and vtkOpenXRManager::Finalize marked as internal APIs

    These functions are now treated as internal to vtkOpenXRRenderWindow. The signature of vtkOpenXRManager::Initialize has changed.

  • vtkOpenXRManager::(Set|Get)UseDepthExtension moved to vtkOpenXRRenderWindow

    These methods have been moved to vtkOpenXRRenderWindow. The vtkOpenXRManager versions are now no-op and deprecated.

Wrapping#

  • Change Java build flags

    VTK_JAVA_SOURCE_VERSION and VTK_JAVA_TARGET_VERSION CMake flags are superseded by VTK_JAVA_RELEASE_VERSION. This aligns with newer JDK javac versions that provide the -release flag, simplifying build configuration.

Fixes/improvements#

Charts#

  • Fix vtkPlotBar::GetBounds logic when log scale is enabled

    The vtkPlotBar::GetBounds(double*, bool unscaled) now correctly returns unscaled bounds when unscaled is true and scaled bounds when unscaled is false.

DataModel#

  • Fix CellTreeLocator for 2D grids

    A std::vector out of bounds access has been fixed when building the locator for meshes whose x, y or z extent is zero.

  • Polygon centroid computation fixed

    An issue with vtkPolygon::ComputeCentroid() has been fixed. It now uses a composite weighted-area triangulation for robustness with non-planar polygons and includes a planarity tolerance. (Author notes)

  • vtkPolyhedron: Implement GetCentroid and use it in GetParametricCenter

    In VTK 9.5.1, the vtkPolyhedron class introduces the GetCentroid function, which computes the signed-volume weighted centroid of a polyhedron using its pyramid decomposition. The GetParametricCenter method has been updated to return the parametric location of the centroid returned from vtkPolyhedron’s GetCentroid function. (Author notes)

  • Implicit Widget Representations Improvements

    Improved interaction and intuitiveness in VTK’s implicit widget representations, including enhanced picking and mouse-based control for shape sizing. A new vtkBoundedWidgetRepresentation base class introduces cropping to outline bounds, with API changes affecting several subclasses. (Author notes)

Filters#

  • Fix vtkBandedPolyDataContourFilter scalars

    You can now select scalars used by vtkBandedPolyDataContourFilter using the SetInputArrayToProcess method instead of changing the scalars on the input data.

  • Fix vtkParticleTracer with unstructured data

    Fixed an issue leading to a crash in vtkParticleTracer where locators for unstructured data would not have been created.

  • Fix UMR in vtkDataSetTriangleFilter

    For a vtkUnstructuredGrid input consisting of only tetrahedrons, vtkDataSetTriangleFilter could give non-deterministic results due to an uninitialized memory read (UMR).

  • Support Partitioned Input in HyperTreeGridGhostCellsGenerator

    The HTG GhostCellsGenerator now natively supports Partitioned inputs, using the first non-null partition found as the HTG to process, fixing issues with multi-partition data.

  • vtkGeometryFilter: Improve performance for polyhedron

    vtkGeometryFilter now efficiently extracts polyhedron faces using GetPolyhedronFaces and GetPolyhedronFaceLocations methods, improving performance.

  • vtkRandomAttributesFilter: Prevent deletion of actives attributes

    When using vtkRandomAttributesGenerator, the filter no longer replaces active attributes; it now appends the new random array and flags it as active. Random normals and tcoords are now correctly named.

  • Relative Mode for vtkTemporalArrayOperatorFilter :warning: BREAKING_CHANGES

    vtkTemporalArrayOperatorFilter now supports a RelativeMode that uses the current UPDATE_TIME_STEP and a shifted time step for temporal operations. This introduces consistent output behavior across data types and enforces encapsulation via getter/setter access to formerly protected members. (Author notes)

I/O#

  • EnsightCombinedReader: Performance improvements pass

    Performance of vtkEnSightGoldCombinedReader improved, especially for large binary files with nfaced/tetrahedron cells. Fixes include tetrahedron-specific cell building, block reading of connectivity data, faster parsing during RequestInfo, and an int overflow fix. (Author notes)

  • Fix AMReX particle reader for files without top-level header

    The vtkAMReXParticlesReader now continues to read particles if a top-level header is missing, initializing the time step to 0 in such cases.

  • Fix ordering of DICOM pixel spacing

    The vtkDICOMImageReader used to provide the vertical and horizontal pixel spacing in the wrong order. This issue was only discovered recently because DICOM pixels are nearly always square.

  • Fix issue with Fides not initializing HIP before using it

    Addressed a crash in Fides caused by attempting HIP memory allocation before HIP initialization. This was fixed by updating VTK-m. (Author notes)

  • Fix vtkAMReXGridReader when reading larger than 2GB files in Windows

    You can now open grid files larger than 2GB on Windows using the vtkAMReXGridReader. Previously, a bug prevented loading arrays stored beyond the 2GB offset.

  • Fix vtkAMReXParticlesReader when using MPI

    The vtkAMReXParticlesReader now functions correctly in parallel MPI mode, fixing a bug that caused incorrect output when the number of grids was not evenly divisible by the number of MPI processes.

  • GLTF document loader default scene

    The vtkGLTFDocumentLoader ensures that the internal cache of scenes is non-empty for consumer code that relies on checking the validity of the default scene.

  • Remove error for missing Fides timestep

    The Fides reader no longer errors if a requested timestep is not found, especially when the Fides file has no specified timesteps. It now sets an appropriate time index (0) in such cases, improving compatibility with tools like ParaView. (Author notes)

  • vtkDIYGhostUtilities: Ensure arrays are enqueued and dequeued properly

    Improvements to vtkDIYUtilities and vtkDIYGhostUtilities for stricter loading, correct saving of array types, ensuring dequeued arrays are valid, and fixing polyhedral meshes in vtkConduitToDataObject. (Author notes)

  • vtkAlembicExporter: Fixed export of textures

    Previously, textures were unintentionally being saved to the current working directory of the executable. Now, they are saved alongside the exported Alembic file.

  • VRML export of cell data colors

    Colors of polydata colored by cell data arrays are now designated as such in the exported VRML file.

MPI#

  • Fix: MPI Gather function hanging when data size was invalid

    vtkMPICommunicator::GatherVVoidArray could hang due to a size check causing an early return for only the failing process. Now, recvLengths and offsets must be specified for all processes when calling vtkCommunicator::GatherV to prevent this.

Python#

  • Python VTK data model improvements

    Further cleaned up field array handling in Python for homogeneous behavior between vtkDataSet and composite datasets. This includes better support for dictionary-like access to point_data and cell_data. (Author notes)

Rendering#

  • ANARI renderer warnings

    The ANARI scenegraph implementation has been fixed so that missing backend feature warnings are only issued once per renderer per device, reducing output buffer spam. Various compiler warnings in ANARI integration classes have also been fixed.

  • Fix actor lighting flag for WASM and cell grid rendering

    Fixed a bug that caused an actor to disappear when lighting was disabled on an actor in WASM with the WebGL2 backend.

  • Fix wide line rendering in GLES default polydata mapper

    The vtkOpenGLLowMemoryPolyDataMapper rendered thick lines incorrectly. It appeared as an extruded cross. This issue is now fixed in the mapper.

  • Fix lighting calculations for PBR interpolation

    When both directional and positional lights were intermixed, the polydata mapper treated directional lights as positional, generating incorrect renderings. This is now fixed. (Author notes)

  • Fix low memory polydata mapper when an actor is added after another is removed from a renderer

    Fixed a bug in vtkOpenGLLowMemoryPolyDataMapper where an actor, if added, removed, and then re-added, would not become visible the second time.

  • Fix OpenGL error in OSMesa backend

    Fixed a GL_INVALID_ENUM error in vtkOSOpenGLRenderWindow::ReportCapabilities caused by using an unsupported method for querying GL_EXTENSIONS.

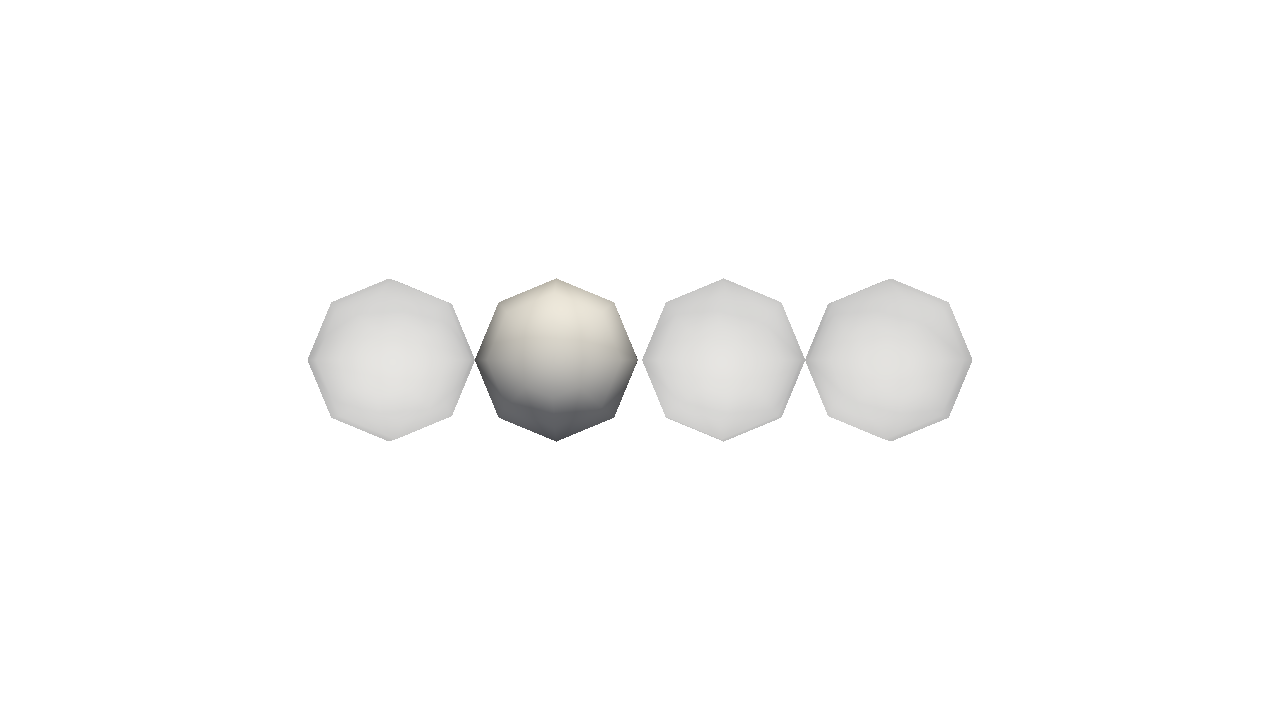

  • Fix vtkCompositePolyDataMapper opacity override

    You can now render opaque blocks in a composite dataset even when the actor has an opacity < 1.0 by setting the opacity of the block to 1.0. (Author notes)

  • Fix vertex visibility in OpenGL mappers

    Vertices of a mesh are now correctly displayed when actor->SetVertexVisibility(true) is called, fixing a bug where they only showed if edge visibility was also on.

  • Fix wide lines with cell colors for Apple silicon

    Thick lines with cell scalar colors now render correctly on Apple silicon. VTK patches the shader code at runtime for the Apple OpenGL over Metal driver to handle an upstream bug. Use vtkOpenGLRenderWindow::IsPrimIDBugPresent() to check for this driver bug.

  • Improve IBO construction performances in vtkOpenGLIndexBufferObject

    For common cases of triangles-only polydata, IBO construction time has been reduced by about 25%. Performance is further improved if polydata cell arrays use 32-bit connectivity IDs. (Author notes)

  • Rectilinear Grid Volume Rendering with Cell Data

    Fixed an issue in the volume mapper for rectilinear grids with cell scalars where the bounds of the dataset were incorrectly mapped to the texture space.

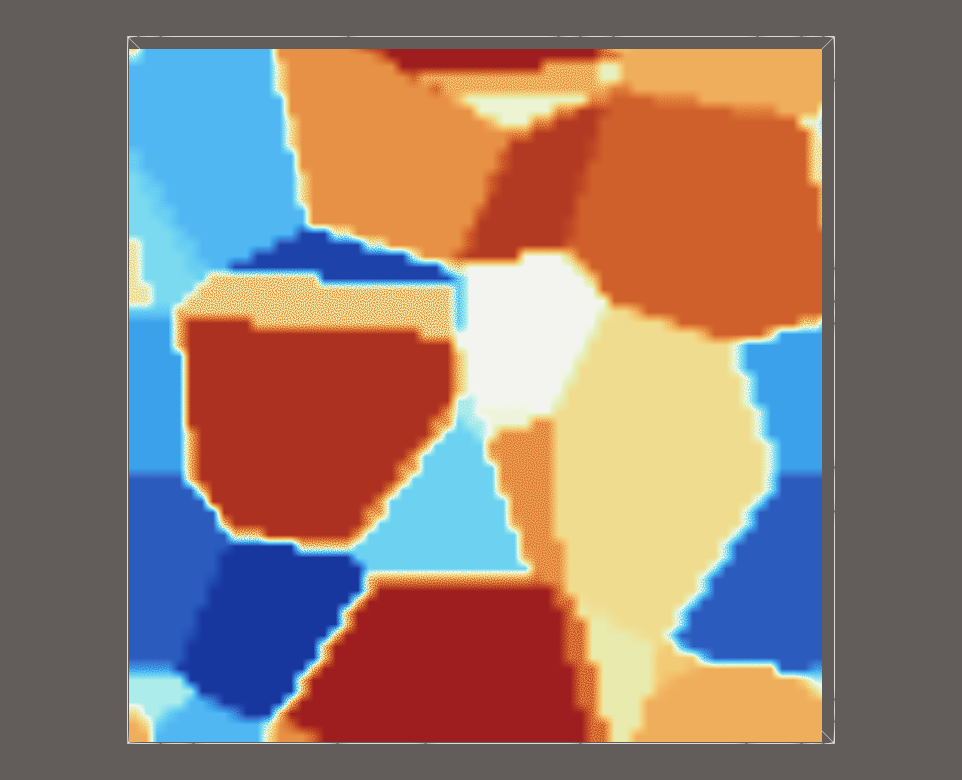

    Before

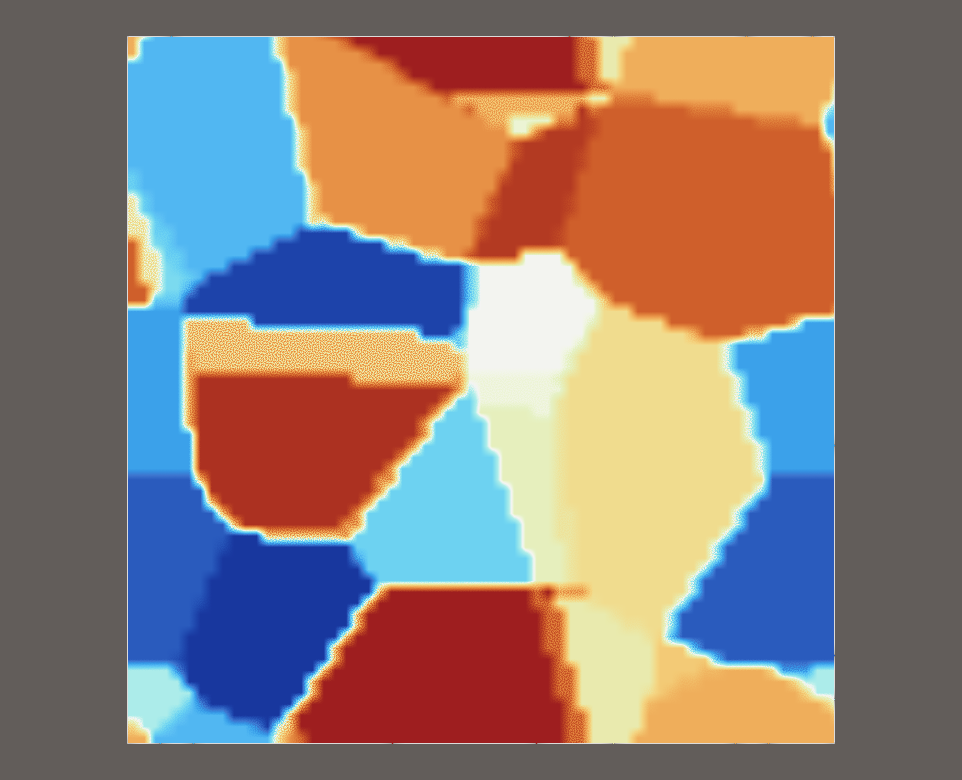

    After

  • Fix X error about maximum clients reached

    Fixes a bug in vtkXOpenGLRenderWindow that prevented users from instantiating more than about 300 render windows on Linux with X11.

  • Fix light transforms when computing shadow maps

    The vtkShadowMapBakerPass computes shadow maps for each light by simulating a vtkCamera for each light and compositing the rendered images. However, an unintentional side-effect of this was that the original light’s transforms were being affected by this. In other words, the lights would be corrupt after the shadow map computation. To circumvent this, we cache the light transforms prior to the shadow map computation and then reset them after.

WebAssembly#

  • Patch state that refers to OSMesa OpenGL window into a WASM OpenGL window class.

    The vtkWasmSceneManager now automatically patches the state provided to RegisterState and UpdateObjectFromState methods to replace ‘ClassName’ entry of vtkOSOpenGLRenderWindow with vtkWebAssemblyOpenGLRenderWindow.

Deprecations/Removals#

  • All APIs that were deprecated in 9.3 are now removed.

  • vtkExtentSplitter::Min and ::Max have been deprecated in favor of std::min and std::max.

  • vtkXMLReader::Min and ::Max have been deprecated in favor of std::min and std::max.

  • Classes like vtkHierarchicalBoxDataSet, vtkHierarchicalBoxDataSetAlgorithm, related geometry filters, and XML readers/writers are deprecated. Use vtkOverlappingAMR versions instead.

  • vtkTypedDataArray, vtkTypedDataArrayIterator, vtkMappedDataArray, vtkCPExodusIINodalCoordinatesTemplate, and vtkCPExodusIIResultsArrayTemplate are deprecated. Use vtkGenericDataArray or vtkAOSDataArrayTemplate/vtkSOADataArrayTemplate alternatives.

  • vtkHyperTreeGridVisibleLeavesSize is deprecated in favor of vtkHyperTreeGridGenerateFields.

  • Several public members related to selection and decimation level in vtkAdaptiveDataSetSurfaceFilter (used by HTG Surface Representation) are now deprecated and have no effect (e.g., Set/GetCircleSelection, Set/GetDynamicDecimateLevelMax). (Author notes)

  • vtkOpenXRManager::(Set|Get)UseDepthExtension are deprecated and now no-op. Use the versions in vtkOpenXRRenderWindow instead.

  • VTKHDF Reader: Remove the MergeParts option

    The MergeParts option of the vtkHDFReader allowed getting a unique Unstructured Grid or PolyData dataset after reading multiple parts. This option has been deprecated and has no effect anymore. Now, multi-piece datasets properly output a vtkPartitionedDataset containing non merged parts. Single-piece datasets still output simple vtkUnstructuredGrid or vtkPolyData. This changes the default behavior of the reader: Unstructured Grid and PolyData multi-piece datasets that used to be read with MergeParts (default) as a single piece are now read as a partitioned dataset. If MergeParts was disabled manually, only the single-piece case will be read differently: instead of forcing the output to be a partitioned dataset with a single piece, the output is now directly the non composite type, Unstructured Grid or PolyData.

    Users should replace the use of MergeParts by manually merging parts using the vtkMergeBlocks or vtkAppendDatasets manually instead.

Updates#

The following changes have been made since v9.5.1

9.5.2#

  • Fix HyperTree initialization routine

    vtkHyperTree::Initialize used to incorrectly set up a internal data structure, causing incorrect iterations indices for vtkHyperTreeGridNonOrientedUnlimitedSuperCursor::ToChild. This fixes the Gradient filter results using “Unlimited” mode for HTG, which now gives correct values.

  • Fix serialization for vtkPlane

    Resolved an issue with vtkPlane serialization where plane parameters were not correctly saved and restored. This ensures consistent behavior when serializing and deserializing vtkPlane objects.

  • Fix MouseWheel events in WASM for multi-viewport setups

    Fixed an issue where mouse wheel event coordinates were incorrectly scaled in vtkWebAssemblyRenderWindowInteractor. When the window.devicePixelRatio value was not equal to 1 in multi-viewport setups, it caused a different renderer to zoom its contents instead of the renderer which was under the mouse cursor. The ProcessEvent method now properly handles coordinate scaling for MouseWheel events, ensuring consistent zoom behavior across all viewports.
