Cell Grid Data-object Improvements#

vtkCellGrid is a new subclass of vtkDataObject aimed at supporting data which breaks the assumptions vtkDataSet makes (such as spatially-varying attributes requiring multiple arrays to compute interpolated values; cell-data values representing functions producing a constant value over the entire cell; or that cell shapes are defined by corner points that are exactly interpolated). The cell-grid class makes very few assumptions about your data; instead, it is a container for arrays related to your data and you must register instances of subclasses of vtkCellGridResponder to respond to the particular queries (subclasses of vtkCellGridQuery) you wish to support.

Discontinuous (and Continuous) Galerkin Cells#

This release includes generalizations and extensions to support H(Curl), H(Div), and H(Grad) function spaces. It also contains classes that use this new functionality to implement fixed-topology cells which support these function spaces. The cell classes all inherit vtkDGCell (named as they are intended to support discontinuous Galerkin finite elements; however, your solution fields do not need to be computed with a Galerkin solver to make use of them).

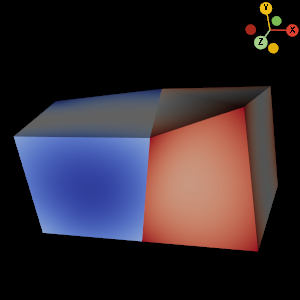

Of particular note is that these cells allow the geometric shape and other cell-attributes to have different polynomial interpolation orders (i.e., non-isoparametric cells are supported). For example, this image

cell-grid-non-isoparametric

shows two linear hexahedral cells colored by a quadratic attribute. Not only do the colors vary nonlinearly across the faces of the cells, but there is a discontinuity in the color-mapped field at the boundary that cannot be modeled by vtkDataSet and its subclasses.

Finally, as this section’s title hints, even though the cell classes are named DG, they also support continuous (CG) cells where each degree of freedom is referenced by a connectivity entry.

Multi-pass Cell Grid Queries#

This release, vtkCellGridQuery has been modified to allow for multiple passes. A new virtual method IsAnotherPassRequired() is provided; by default it returns false so existing query classes do not need to be modified. Override it if your algorithm needs multiple passes, but be aware it must eventually return false for the algorithm to terminate.

Another virtual method, StartPass(), is called at the beginning of each pass and you may override it to update the query’s state as needed. This method exists in addition to the Initialize() and Finalize() methods already invoked at the beginning and end of the entire query.

New Queries and Responders#

The following subclasses of vtkCellGridQuery are now available.

  • vtkCellGridBoundsQuery – compute the spatial (3D) bounds of a cell grid.

  • vtkCellGridEvaluator – classify and evaluate cell attributes of a cell grid at a set of input points.

  • vtkCellGridRangeQuery – compute the range of a cell attribute.

  • vtkCellGridSidesQuery – compute the number of occurrences of cell boundaries of any dimension.

  • vtkCellGridElevationQuery – add an “elevation” attribute to an existing cell grid.

  • vtkUnstructuredGridToCellGrid::TranscribeQuery – transform an unstructured grid (potentially with special markup) into a cell grid. Note that this query is an implementation detail inside a subclass of vtkAlgorithm.

  • vtkCellGridRenderRequest – render a cell grid.

Each query class has a matching responder to support continuous and discontinuous Galerkin (CG and DG) cells that support H(Curl), H(Div), and H(Grad) function spaces for their cell attributes. Only H(Grad) interpolation is supported for a grid’s “shape” attribute (the mapping from reference elements into world coordinates).

Filters based on Queries#

Several of the queries above are used to implement subclasses of vtkAlgorithm which accept cell grids. Other algorithm classes contain their own query classes nested into the algorithm.

  • vtkCellGridComputeSides – compute the external boundaries of cells using vtkCellGridSidesQuery.

  • vtkCellGridElevation – add a new cell attribute to an existing cell grid using vtkCellGridElevationQuery.

  • vtkUnstructuredGridToCellGrid – convert an unstructured grid into a cell grid using its internal TranscribeQuery.

  • vtkCellGridCellCenters – place a vertex cell at the parametric center of each input cell.

  • vtkCellGridCellSource – generate a single cell of the requested type, optionally with cell attributes.

  • vtkLegacyCellGridWriter – write cell-grid data in VTK’s “legacy” format (by wrapping JSON into a legacy header).

  • vtkLegacyCellGridReader – read cell-grid data from a “legacy”-formatted file.

  • vtkCellGridToUnstructuredGrid – convert to an approximating unstructured grid; currently, all cell-attributes are converted to point-data and the output will have linear geometry even if the source uses quadratic or higher order interpolation.

  • vtkPassSelectedArrays – this pre-existing filter now handles cell-grid data; instead of named arrays being passed/omitted, entire cell-attributes (with all of their arrays) are passed/omitted.

  • vtkCellGridTransform – apply a linear transform to the shape attribute of a cell-grid.

  • vtkCellGridWarp – add a scaled version of a cell-attribute to the shape attribute of a cell-grid.

  • vtkIOSSCellGridReader – read exodus-formatted files as cell-grids rather than unstructured grids.

Attribute Calculators#

Just as cell grids can be asked for responders to different types of queries, we have added new functionality to deal with cell attributes. This way, a query responder can ask a separate object to perform interpolation, integration, or other calculations involving cell attributes. These objects all inherit the base class vtkCellAttributeCalculator.

If a responder does not need special information about a cell-attribute, it can delegate calculations to an attribute calculator. Each subclass of vtkCellAttributeCalculator provides its own custom API for performing its calculations.

For example, responders to the vtkCellGridEvaluator query need to classify points as inside cells, evaluate the parametric coordinates at points classified as interior to a cell, and interpolate an attribute value at the parametric coordinates. Each of these tasks requires knowledge of either the shape attribute or another cell-attribute defined over the grid. While the responder knows how to handle specific types of cells, its work does not require it to know how to handle interpolation in every function space supported by every cell-attribute. Therefore, it asks for an attribute calculator specific to

  • the work it needs performed (interpolation of the cell-attribute),

  • the current cell type, and

  • the relevant cell-attribute,

rather than hardwiring support for a fixed set of function spaces.

The vtkCellGridResponders class – in addition to holding a registry of responders for cell types to different query types – now also holds a registry of these calculator classes that can perform calculations on cell-attributes of different types (i.e., different function spaces). This allows support for new function spaces to be added to existing algorithm implementations without changes.

In the next section below, we discuss the first cell-attribute calculator subclass provided by VTK.

Interpolation Calculator#

We now provide a base class, vtkInterpolateCalculator, for evaluating cell attributes and their derivatives at one or more points inside cells. Similar to the query/responder pattern above, you may register subclasses to handle not just specific types of cells but also specific function spaces defined on those cells.

An implementation (via a subclass) is provided for CG/DG cells that works with H(Curl), H(Div), and H(Grad) function spaces.

Rendering#

The rendering query for cell grids has been refactored to support novel function spaces and also to make prototyping and debugging simpler; a base vtkDrawTexturedElements class is provided that binds a user-specified set of arrays to OpenGL texture objects and calls glDrawElementsInstanced() with the number of elements and instances you specify. You can also set the shape of elements rendered (i.e., lines, triangles, strips, etc.). Thus, given

  • a set of vtkDataArrays and names for their samplers;

  • a set of shader programs (vertex, geometry, and fragment);

  • an element shape;

  • the number of elements; and

  • the number of instances of the elements above;

the array renderer will use the arrays however your shaders choose to draw data.

The vtkOpenGLCellGridMapper uses a vtkCellGridRenderRequest to find responders that can render input cell grids and the DG responder configures an array renderer to draw its cells to a framebuffer.

Example Application#

The Examples/GUI/Qt/CellGridSource directory contains an example application using the vtkCellGridCellSource filter to construct a single cell so you can explore the way arrays in different array-groups are used to specify cell-grids. It has an editable spreadsheet view so you can change the coefficients used to define the cell’s attributes (including its shape).
